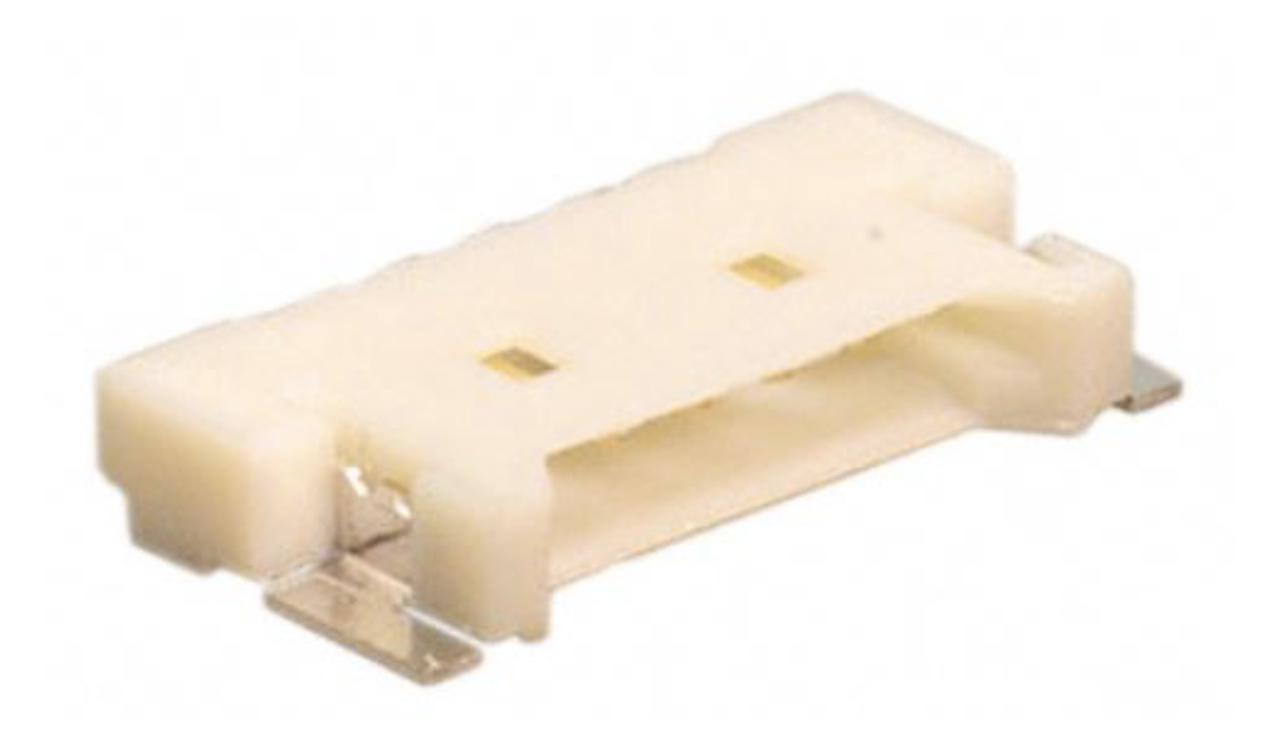

J8 is a Hirose B5B-PH-SM4-TB(LF)(SN) 1x5 2.54mm header that provides connectivity to the backlight power and brightness control of an LVDS Display.
Pin | Description |
1 | 12V |
2 | LVDS_BKLT_EN |
3 | GND |
4 | LVDS_BKLT_CTRL |
5 | 5V |
