J7

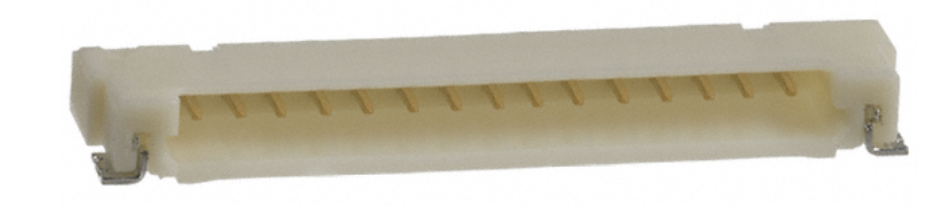

J7 is a Hirose df14-20p-1.25 1x20 header that provides connectivity to the external LVDS display. This connector is for data and logic power to the display only.

Pin Description
1 V_LCD
2 V_LCD
3 GND
4 NC
5 LVDS0-
6 LVDS0+
7 GND
8 LVDS1-
9 LVDS1+
10 GND
11 LVDS2-
12 LVDS2+
13 GND
14 LVDS_CLK-
15 LVDS_CLK+
16 GND
17 LVDS3-
18 LVDS3+
19 GND
20 6/8 bit select (jumper)

ESD Protection

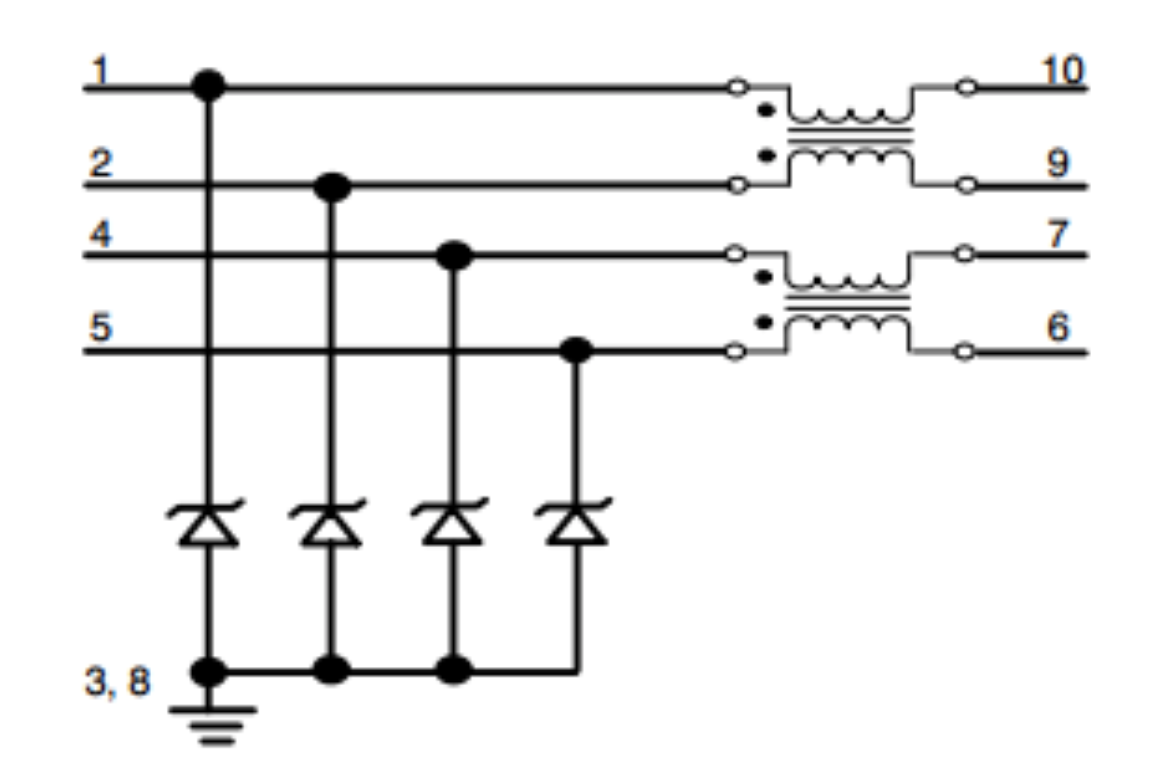

The Piconium routes only channel “A” of the LVDS signals to the 20 pin header for interface to an LVDS display via a custom cable. All differential pairs are protected from ESD using EMI4182 common mode filter with low capacitance (0.8pf) ESD protection as shown below.
