J1

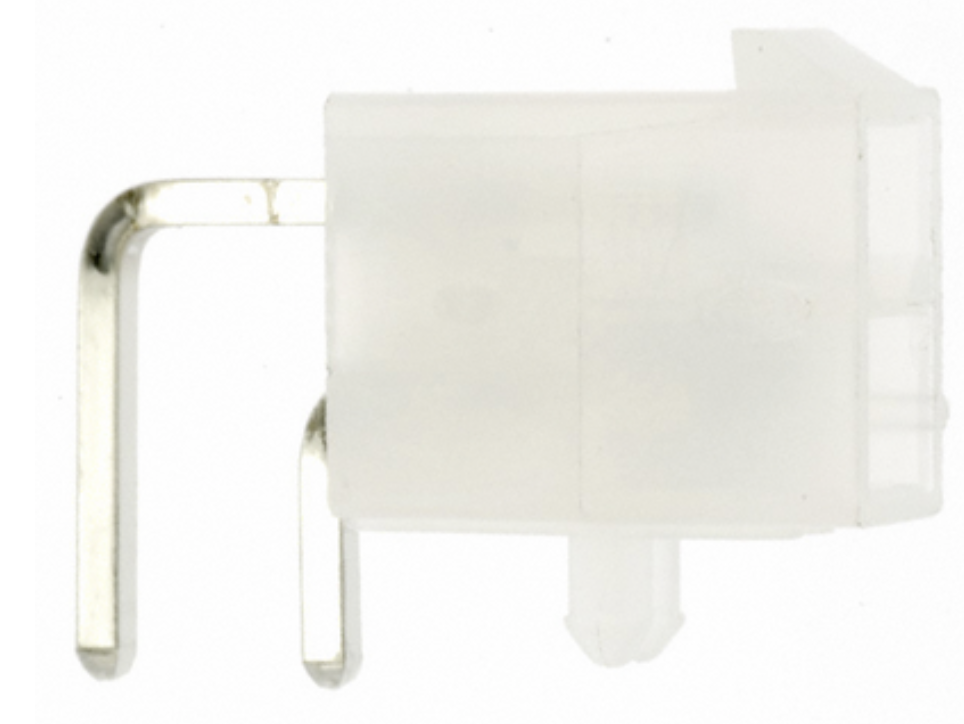

J1 is a Molex 39-30-1020 1x2 Right Angle Mini-Fit Jr. connector that provides power to enter onto the board. Note: On this connector, GND is the longer pin to the left below. +12V (nominally) is the shorter pin to the right.

Pin Description
1 12V In
2 Ground
