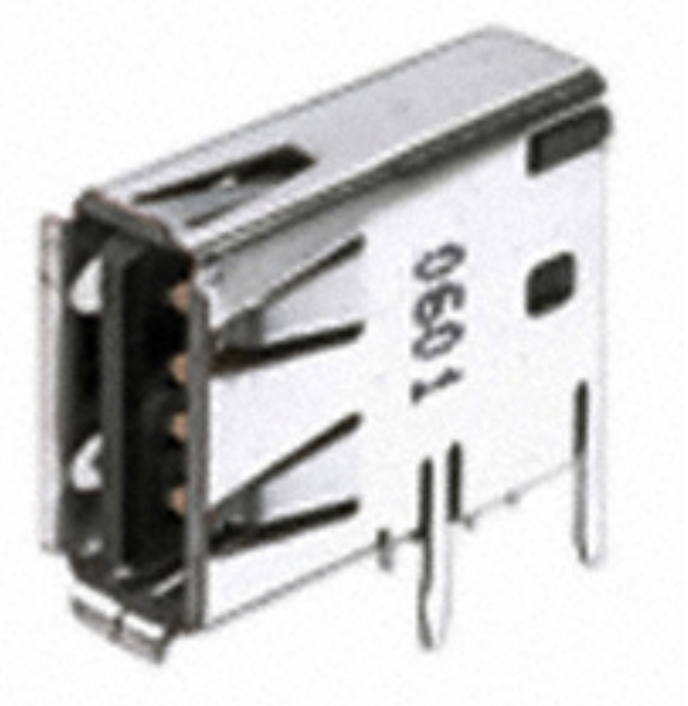

P2, P3, P4, P5, P6, and P8 are an Amp 292336-1 Vertical Mount Type A USB connector that provides connectivity to external peripherals.
Pin | Description |
1 | VUSB1 |
2 | USB1- |
3 | USB1+ |
4 | GND |
P2, P3, P4, P5, P6, and P8 are an Amp 292336-1 Vertical Mount Type A USB connector that provides connectivity to external peripherals.
Pin | Description |
1 | VUSB1 |
2 | USB1- |
3 | USB1+ |
4 | GND |
