J17 - underside of board
Pinout SATA data connector

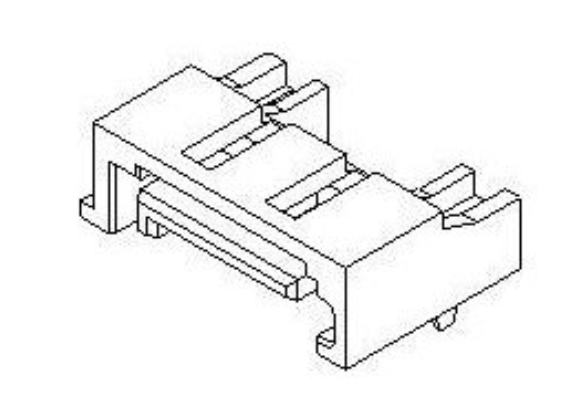

J17 is a Molex 47080-4002 Horizontal Mount SATA connector that provides connectivity to an external SATA drive. This is the data connector only. To provide power to a SATA drive, pick up +5V from an unused USB port through a USB to SATA POWER adapter cable. This is adequate for most SSD SATA drives. For other drive types that need other SATA voltages besides +5V, use an external supply to supply voltage to the drive. Note this SATA connector is only present (and is optional) of revision 4 or greater of the Piconium board. It is located on the under side of the board.

Pin Description
2 A+
3 A-
5 B-
6 B+
